Digital Multimeter, NCV Contactless Multi Tester, Battery Tester, Auto-Ranging Assessments, Present, Voltage, Resistance, Continuity, Diode, Frequency, Overload Safety, LED Mild, 2 Take a look at Leads
$14.99
Worth: $16.99 - $14.99
(as of Oct 01,2022 03:41:41 UTC – Particulars)
Product Description

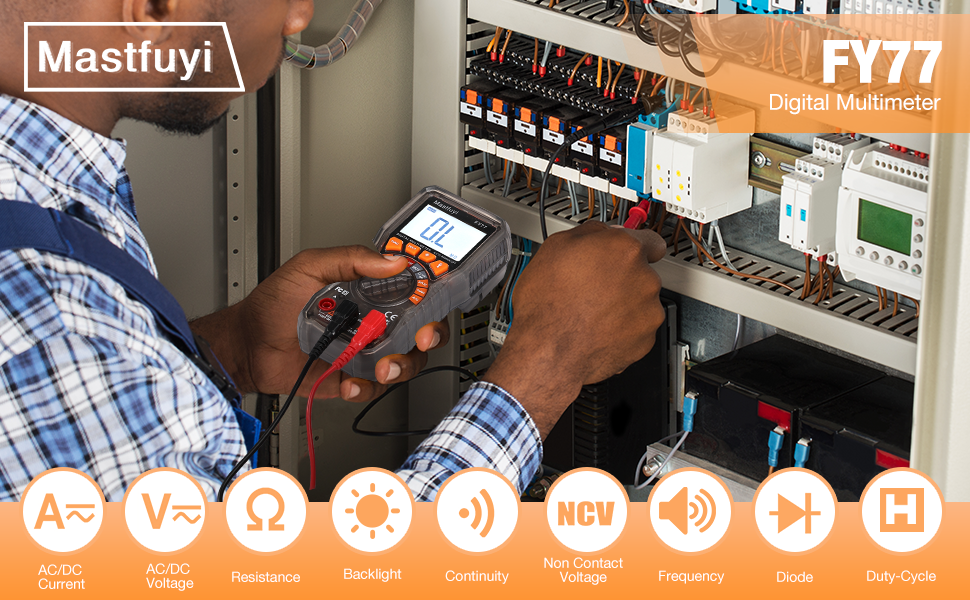

Digital Multimeter
Full safety perform, anti excessive voltage ignition circuit design, streamline design, particular battery voltage take a look at file 1.5v/6v/9v/12v, backlight show, computerized vary, full view massive display screen, NCV measurement, low voltage show, flashlight lighting, knowledge retention and different features.
Measurable diode: ahead DC present is about 1mA, reverse DC voltage is about 3.2V.
Continuity take a look at: If the resistance is lower than 100Ω, a buzzer will happen.
Battery take a look at: 1.5V decision: 0.001V; 6V decision: 0.01V; 9V decision: 0.01V; 12V decision: 0.01V
Measurable NCV perform, knowledge retention, backlight, flashlight perform.
Specs
DC Voltage: 200mV/2V/20V/200V, 600V ± (0.8% rdg + 2dgt)
AC Voltage: 2V/20V/200V ± (1.0% studying + 3 dgt), 600V ± (1.2% rdg + 3dgt)
DC Present: 200uA/2000uA/20mA/200mA ± (1.5% studying + 3 dgt), 10A ± (2.0% studying + 5 dgt)
AC Present: 200uA/2000uA/20mA/200mA ± (1.5% studying + 4 dgt), 10A ± (2.5% studying + 5 dgt)
Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ ± (0.8% studying + 2 dgt), 20MΩ ± (1.0% studying + 2 dgt)
Automated vary, full scale is 1999 counts.
Maintain: knowledge holding perform
Energy provide: 1.5V battery aaax3
Working temperature and humidity: 0 ~ 40 ° C / 32 ~ 104 ° F, 45% – 80% RH
Storage temperature and humidity: – 20 ~ 60 ° C / – 4 ~ 140 ° F, 45% – 80% RH
Security degree: iec61010-1, cat Ⅱ 600V
LCD Show & Backlight
Press the backlight button for two seconds to activate the backlight, which is handy for studying in darkish locations. The backlight turns off routinely after 15 seconds.
Auto Sleep Perform
When the Digital Multimeter isn’t operated for quarter-hour, it is going to routinely flip off to keep up the facility and facilitate the subsequent use.
Multifunction
With precision measurement of battery voltage, AC / DC voltage as much as 600 V, AC / DC present as much as 200 mA / 10 A, Resistance to twenty MΩ, Continuity, Resistance, Diode. It’s a excellent machine for fixing electrical issues in a variety of commercial and family units comparable to digital gear, family home equipment, energy provides and wiring methods
Bundle Dimensions : 6.97 x 4.33 x 2.25 inches; 12.49 Ounces
Merchandise mannequin quantity : FY77
Date First Obtainable : November 19, 2021
Producer : Mastfuyi
ASIN : B09M8641Y7
Nation of Origin : China
