DIY Digital Clock package 6 bit Digital Circuit Clock Manufacturing package Ability Contest Coaching Supplies for Adults

$15.99

Added to wishlistRemoved from wishlist 0


Value: $15.99
(as of Jul 29,2022 19:41:58 UTC – Particulars)




Resistor 510Ω: R1-R44
Resistor 4.7KΩ: R45, R46, R47
Resistor 100KΩ: R49
Resistor 100MΩ: R48
Diode 1N4148: D4, D6, D7, D8
Crystal 32768Hz: Y1
Porcelain capacitors 22pF: C4, C5
Ceramic capacitor 0.01uf: C1, C2, C3
Gentle-emitting diode LED: D1, D2, D3, D4
16-pin IC socket: U1, U2, U3, U4, U5, U6, U8, U9, U10, U11
14-pin IC socket: U11, U12
Toggle Swap SS12D00: S3
Tact Swap 6x6x5mm: S1, S2
Capacitor 100uf: C6
0.56-inch 1-bit whole unfavorable pink digital tube: DS1, DS2, DS3, DS4, DS5, DS6
PCB terminal KF301: P1
Built-in circuit CD4511 (decoding driver): U1, U2, U3, U4, U5, U6
Built-in circuit CD4518 (counter): U8, U9, U10
Built-in circuit CD4081 (4-2 enter AND gate): U7
Built-in Circuit CD4060 (Oscillator Divider): U11
Built-in circuit CD4013 (D set off): U12
PCB: 130x70mm double-sided
Options
1.package deal embrace Element checklist,Please weld within the order of the element checklist.
2.Resistor, crystal, ceramic capacitor, toggle swap, no matter constructive and unfavorable
3.Diode, capacitor, lengthy pin is constructive, comparable to the place of the board +
4.1N4148 black circle corresponding board white mark place
5.Built-in circuit and IC notch place corresponds to the place of the board notch
6.The place the place the tact swap might be usually loaded is appropriate.

Product describe:This circuit makes use of a quartz crystal oscillator because the time base pulse oscillator, and obtains the second time base sign after digital frequency division. The time is displayed by the counter, decoder and show. As a result of the crystal oscillator is used because the time base pulse, so the time is correct.

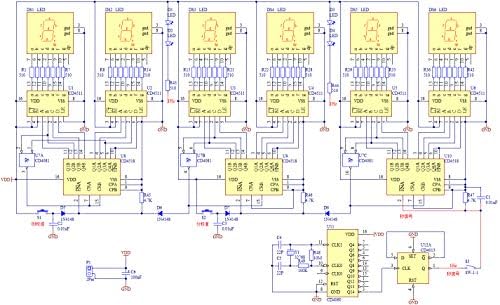

circuit:Second, minute, and hour counter circuits use double BCD synchronous up counter CD4518 to depend and output BCD code. The BCD code shows the corresponding quantity by way of CD4511. The second and minute counters are 60-digit depend and 24-hour depend.
PCB:130x70mm double aspect. enter voltage:5V.The circuit doesn’t have a power-off reminiscence time perform, and the time must be recalibrated after power-off.
Required instruments: electrical iron: 30W-40W, solder wire: 0.8-1mm, Melting level is about 183 levels Celsius.tweezers, indirect pliers, multimeter.
Appropriate for digital DIY digital interest freshmen to be taught and observe welding.It’s broadly utilized in colleges to assist college students be taught fundamental mechanical and digital abilities.
