Good WiFi Contact Thermostat Temperature Wi-fi Controller For Water/Electrical Ground Heating Water/Fuel Boiler Works Google Dwelling

WIFI Good Contact Thermostat LCD Display screen Backlight Water Heating Electirc Ground Heating Water Fuel Boiler Temperature Controller Wi-fi Distant Voice Management Tuya Good Life App work with Amazon Alexa Google Assistant

Observe:

Mannequin: BHT-600-GA/BHT-002-GB/BHT-002-GC Don’t embrace Wi-Fi Perform.
Mannequin: BHT-600-GALW/BHT-002-GBLW/BHT-002-GCLW/ Embrace Wi-Fi Perform.

Sensor will not be included for GA/GC. If wanted, select sensor additionally.

Mannequin Definition:

[BHT-6000-GA]: Water Heating 3A
[BHT-6000-GB]: Electrical Ground Heating 16A
[BHT-6000-GC]: Water/Fuel Boiler 3A

[BHT-6000-GALW]: Water Heating Wifi Voice Contorl 3A
[BHT-6000-GBLW]: Electrical Ground Heating Wifi Voice Management 16A
[BHT-6000-GCLW]: Water/Fuel Boiler Wifi Voice Management 3A

Modbus or RS485 is Non-obligatory. If wanted, contact us.

On Performance

1. Highly effective Capabilities Are Obtainable Reminiscent of BACnet/Modbus/Wifi and so forth.
2. 0.5℃ Accuracy Retains temperature inside the degree you set
3. Knowledge Reminiscence when energy is off
4. 5+2 Six intervals Programmable Maximize Consolation and Economic system

Technical Knowledge

Kind: Water Heating/Electrical Heating/Water Fuel Boiler
Sensor: NTC, 10K
Accuracy: ±0.5℃ or ±0.1℉
Set Temp. Vary: 5-35℃
Room Temp. Vary: 5-99℃
Energy Consumption: ＜1.5W
Timing Error: ＜1%
Energy Provide: 95-240VAC, 50-60Hz
Present Load: 3A(Water heating, water/gasoline boiler) | 16A(Electrical heating)
Shell Materials: PC+ABS(Flame retardant)

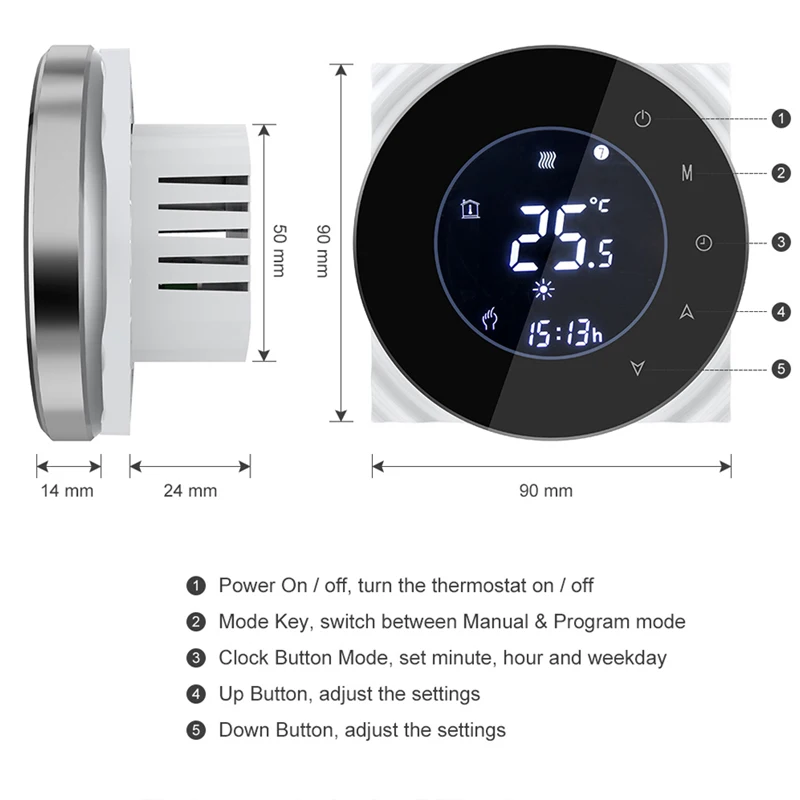

Dimension: 86x86x13.3mm
Ambient Temp.: 0-45℃, 5-90% RH (non-condensing)
Storage Temp.: -5-45℃
Set up Gap Distance: 60mm
Safety Stage: IP30
Buttons: Capactive Contact Buttons
Wire Terminals: Wire 2*1.5mm² or 1*2.5mm²

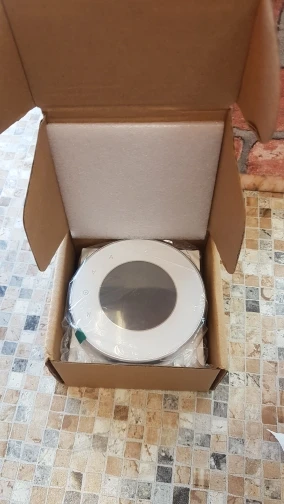

Packing Listing

Thermostat x1 + Screw x2 + English Handbook x1

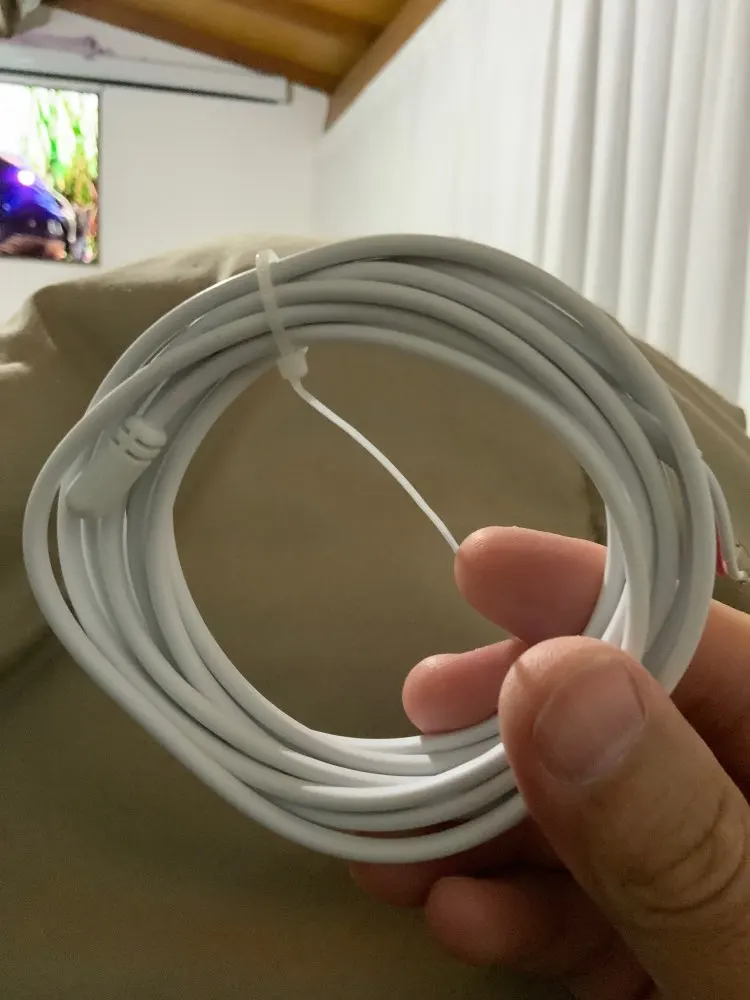

Ground Sensor is included for Electrical ground heating thermostat.
GA and GC will not be included, if wanted, select collectively when place order.

What He Can Providing

1. [Energy Saving]: Low consumption and vitality saving. Enable you to get monetary savings
2. [ Program]: Thermostat works mechanically throughout holidays in programmable mode.
3. [Kid Lock]: Children lock perform keep away from youngsters mis-operate the thermostat
4. [Dual Sensor]: Built-in Sensor to measure air temperature
5. [Memory]: Constructed-in Battery, setting might be restoration even reducing electrical energy or energy failure

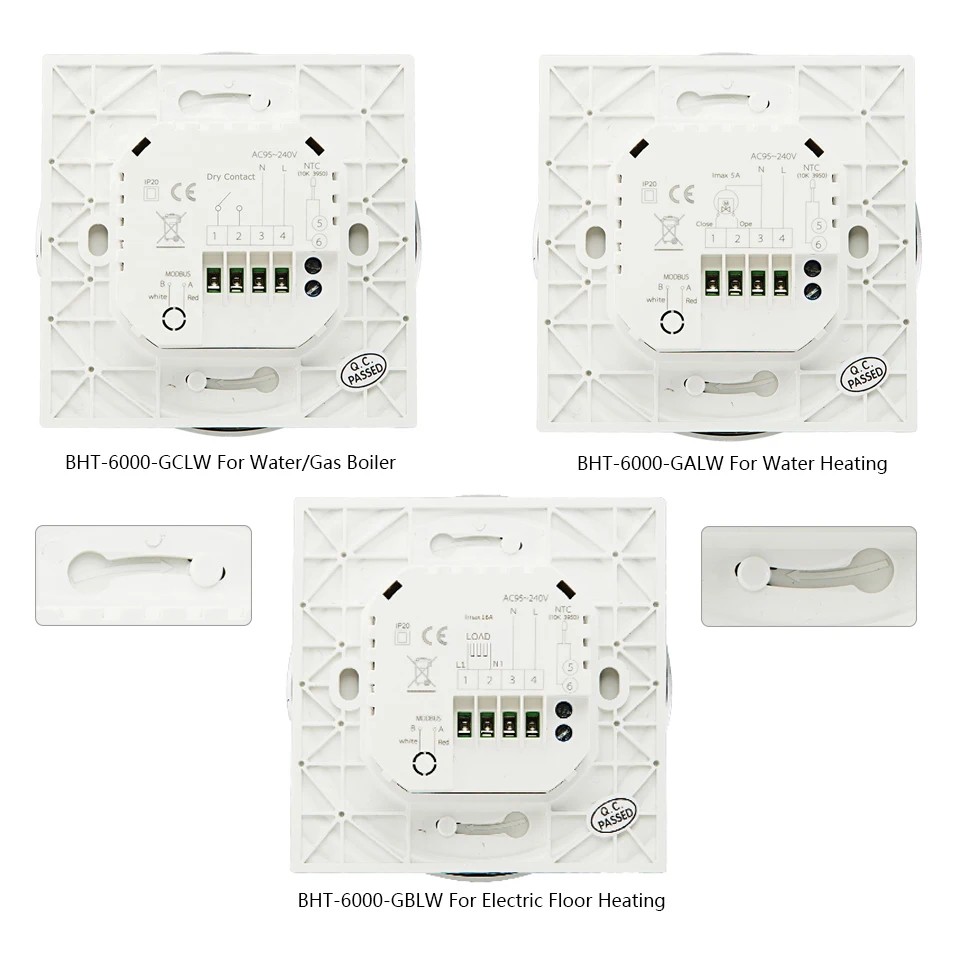

GB GA GC

Good Life Tuya APP Distant Management

remotely management your units the place you might be even if you find yourself outdoors.

INSTALLATION
Your thermostat is appropriate foe set up inside a typical 86mm pattress field or European 60mm pattress field
Step 1. Hold energy off. See Fig 1
Step 2. Take away the mounting Plate by rotating the LCD half. See Fig 2.

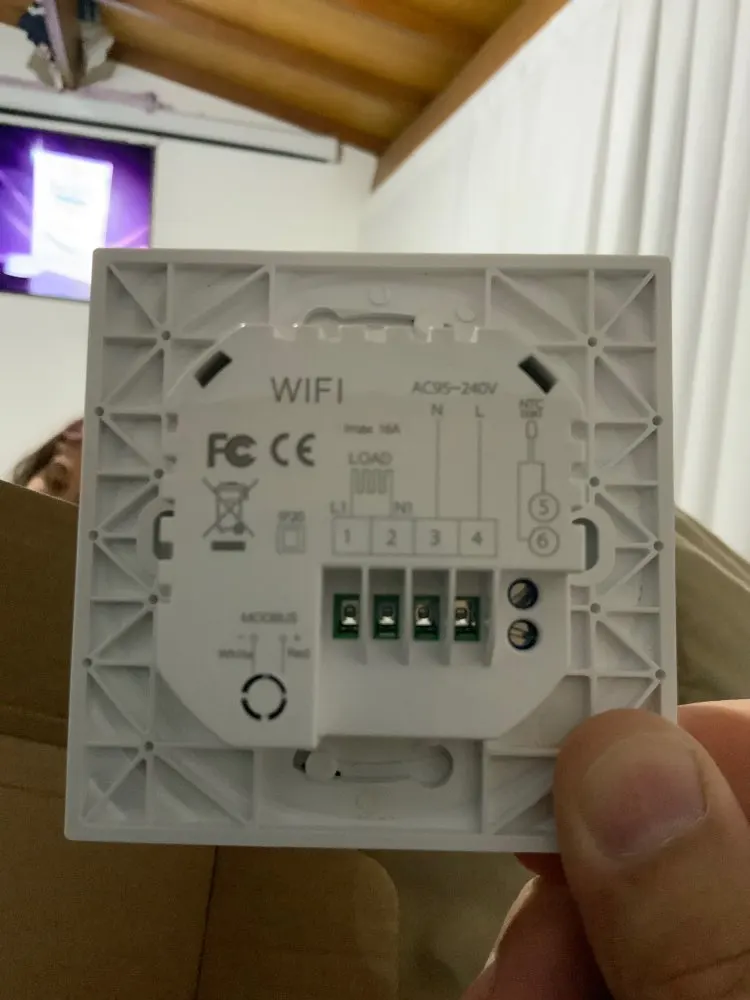

Step 3. Join energy provide, load into the suitable terminals. (see “Wiring your thermostat” for particulars and Fig 3).
Step 4. Repair the mounting plate into the wall with screws within the field. See Fig 4.
Step 5. Fasten physique of the thermoatat and the mounting plate by way of rotating. See Fig 5.
Step 6. Set up full. See Fig 6.
